Hand operated magnetic separation instrument that is absorbing and discharging the ferrous metals form the mixture on the conveyor line within given distance by using powerful magnetic attraction.

-
 Although it is depends on the absorbing distance, possible to absorb and remove the piece of iron over 5Kgs such as iron rod, steel wire and excavator tips & tooth by using powerful magnetic attraction.
-  More suitable for production line having small sorting volume.
-
Absorbed ferrous metals on the magnet can be removed by stopping the conveyor line and turning off main power.
- This was supplied widely to rock mountain/aggregate manufacturer mainly.






Rock mountain/aggregate, food & drink treatment, glass production line and etc.Hand operated magnetic separation instrument that is absorbing and discharging the ferrous metals form the mixture on the conveyor line within given distance by using powerful magnetic attraction.


(㎜)

Model Applicable
Belt
Conv Width
Distance
to
Conveyor
Dimension Magnet
Unit
Power
Consumption
Mass
A B C D E
HEMS-50 500 150-200 400 1000 950 650 550 1.2kw 550kg
HEMS-60 600 200-300 1000 110 800 700 2kw 750kg
HEMS-75 750 250-350 1000 1240 940 840 3kw 980kg
HEMS-90 900 250-350 430 1100 1360 1140 960 4.5kw 1120kg
HEMS-105 1050 300-400 1100 1500 1300 1100 5.5kw 1350kg

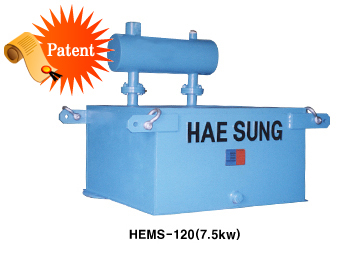

HEMS-120 1200 300-450 450 1200 1700 1400 1300 7.5kw 1950kg
HEMS-140 1400 350-450 1200 1750 1500 1350 9kw 2300kg
