Located in dropping area of conveyor, remove and recovery the ferrous metals in various kinds of material or scrapped material.
- Powerful absorbing power and the life cycle of magnetic attraction is semi-permanent.- It is possible to change the existing drum to magnetic drum.
-
More suitable for separation the light weight iron materials such as nail, steel wire, piece of iron, tools and etc.




Can assortment area, scrapped wood treatment., construction waste treatment, food & drink treatment and etc.


(§®)

Model Belt
Width
Dia Dimension Mass
A B C D E F
PPMD-3140 400 315 450 780 195 135 50 45 110kg
PPMD-3150 500 550 880 60 55 138kg
PPMD-3160 600 650 980 160kg
PPMD-3180 800 850 1180 230kg
PPMD-4070 700 400 750 1120 225 145 380kg

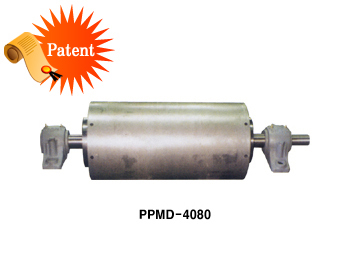

PPMD-4080 800 850 1220 450kg
PPMD-4590 900 450 950 1330 230 150 70 65 540kg
PPMD-45100 1000 1050 1430 610kg
PPMD-45120 1200 1250 1630 680kg
